10R 280W Hybrid Beam Spot Wash Moving Head

Velar Pointe
OEM&ODM Available
Yodn 315W Lamp Available
Local stock warehouse for fast delivery with free Duty
Share:
Contact Us

10R 280W Hybrid Beam Spot Wash Moving Head

Video&Image

Specification

Technical Sheet

  • Pan: 540°
  • Tilt: 270°
  • Pan and tilt speed adjustable
  • Pan and Tilt-invers adjustable via display
  • Automatic pan and tilt correction
  • Mechanical dimmer
  • Mechanical shutter and strobe effect
  • Colour wheel with 27 colours + split colours + open and colour pass in both directions with speed regulation
  • Two gobo wheels with gobo run and gobo shake (Image size 13 mm / Gobo size 14.8 mm): first gobo wheel with 14 static gobos, second gobo wheel with 9 freely rotatable and indexable gobos
  • Two rotatable and indexable effect prisms (8 facets round and 5 facet lines)
  • Motorised zoom: Beam: 3° - 11° / Spot: 7° - 25°
  • Motorised focus
  • Frost filter
  • Fan cooling
  • Connections: DMX input and output: 3 pin XLR
  • Power input and output: PowerTwist
  • Includes Power Twist cable (approx. 1.5 m)
  • Power supply: 100-240 V, 50/60 Hz
  • Max. Power Consumption: 347 W
  • Dimensions (W x H x D): 365 x 574 x 256 mm
  • Weight: 17 kg

Packing

  • 1×power cable
  • 1×safety cable
  • 1×dmx cable
  • 1×user manual
Save & Print

Accessories

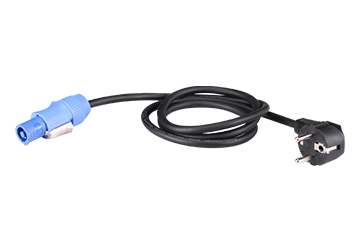

Powercon Cable

Safety Cable

DMX Cable

Flight case (optional)

Silver&Black optional

Omega Bracket
