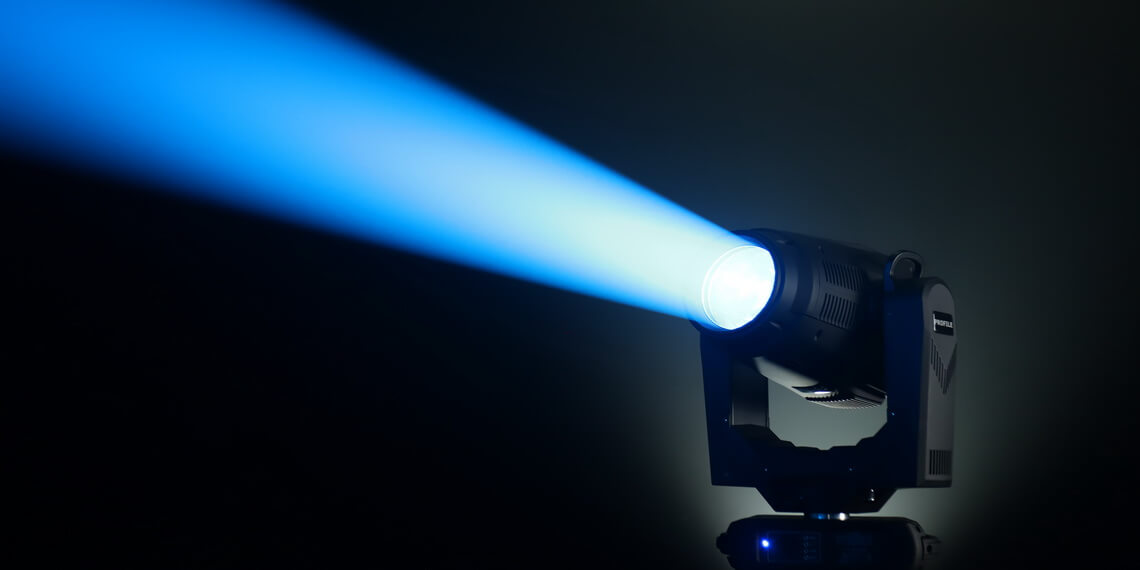

550W LED Hybrid Beam Spot Wash +Framing

VIVA 550 PROFILE
550W LED Module Engine
CMY+PROFILE
OEM&ODM Available
Share:
Contact Us

550W LED Hybrid Beam Spot Wash +Framing

Video&Image

Specification

Technique

  • Voltage: 100V~240V AC, 50/60Hz
  • Power: 700W @ 220V
  • Power factor: PF>0.9

Specification

Light source specification:

  • Light source:600W high brightness Module LED (in order to protect the led lifetime, the
  • real power adjust to 550W)
  • Color temperature:7500K-8000K
  • Life time:50000 hours

colour:

  • 1 color wheel: 8 colors + white
  • 2.With C M Y function, color can be adjusted;
  • Can be mixed to make the color richer.

Gobo wheel:

  • 1 rotating gobo wheel: 7 gobos + white

The pattern plate adopts a detachable design, which is more convenient to replace the

pattern plate

  • 1 fixed gobo wheel:11 gobos + white
  • 1 Profile wheel: can cut out any geometric pattern to make the effect more dazzling

Prism:

  • Two prism wheel, can be rotated in both directions

Focus:

  • DMX linear focus adjustment, super smooth focus adjustment.

Strobe/Dimming:

  • Electronic strobe, 0.3-25 times/second,linear dimming

Frost:

  • Independent frost lens, softer light

Rotation angle:

  • Use three-phase stepping motor, fast, quiet, with automatic return function.
  • Horizontal:540°
  • vertical: 270°

24Beam Angle:

  • 4-40°
  • DMX linear amplification, the beam angle can be freely switched from 4 to 40 degrees

Control mode:

  • DMX512 signal, 3-pin + 5-pin
  • 33CH channel mode

Other functions:

  • Horizontal and vertical speed adjustable
  • Use powerful silent fan, LED temperature display, reduce power due to overheating, and
  • ensure LED lifetime
  • Modular structure for easy maintenance

Housing material/protection level:

  • High temperature/UV light resistant engineering plastic
  • Protection grade: IP20

weight:

  • Net weight: 26kg
  • Gross weight: 27kg
Save & Print

Accessories

POWER CABLE

DMX Cable

SAFETY CABLE

Folding clamp optional

Flight case
